Connecting a SMB Server to CCE

V1.0 – August 2024

Version	Author	Description
V1.0 – 2024-08-01	Gustavo Scovini 50037306	Initial version

INTRODUCTION

This guide will walk you through the steps to connect and mount an existing SMB server to a Kubernetes pod using Huawei Cloud’s Cloud Container Engine (CCE).

Prerequisites

• Linux SMB server deployed, in this guide it`ll be used Ubuntu 22.04: https://ubuntu.com/tutorials/install-and-configure-samba#1-overview

• Kubectl: https://kubernetes.io/docs/tasks/tools/install-kubectl-windows/

• Buying an EIP: https://support.huaweicloud.com/intl/en-us/qs-eip/eip_qs_0001.html

• CCE (standard) deployed in HWC with an EIP: https://support.huaweicloud.com/intl/en-us/qs-cce/cce_qs_0008.html

• Node created in CCE: https://support.huaweicloud.com/intl/en-us/api-cce/cce_02_0242.html

OBS: All resources in this guide are deployed within the same network (192.168.0.0/16). If you plan to deploy them in separate networks, ensure there is proper connectivity between the SMB server and the CCE environment.

CONFIGURATION

Connecting to cluster using kubectl

In the CCE instance page, click on Overview>EIP>Bind

Now, click on kubectl > Configure, copy the contents of the YAML file, and paste them into the. kube/config file.

Installing Helm 3

To install the CSI driver, we will use the Helm package manager. Follow these steps to complete the installation:

Windows (Chocolatey)

choco install kubernetes-helm

Linux (Script)

curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3
chmod 700 get_helm.sh
./get_helm.sh

Installing SMB CSI Driver for Kubernetes

The SMB CSI driver enables Kubernetes to access SMB servers on both Linux and Windows nodes. It supports the dynamic provisioning of Persistent Volumes (PVs) through Persistent Volume Claims (PVCs) by creating new subdirectories on the SMB server. For more details, visit the SMB CSI driver GitHub page.

helm repo add csi-driver-smb https://raw.githubusercontent.com/kubernetes-csi/csi-driver-smb/master/charts
helm install csi-driver-smb csi-driver-smb/csi-driver-smb --namespace kube-system --version v1.15.0 --set linux.kubelet=" /mnt/paas/kubernetes/kubelet"

OBS: The parameter –set linux.kubelet=” /mnt/paas/kubernetes/kubelet” is mandatory here

Create a secret to store SMB credentials

kubectl create secret generic smbcreds --from-literal username=USERNAME --from-literal password="PASSWORD"

Create PV bound with SMB share

Create a pv-smb.yaml file and edit source in volumeAttributes:

apiVersion: v1
kind: PersistentVolume
metadata:
  annotations:
    pv.kubernetes.io/provisioned-by: smb.csi.k8s.io
  name: pv-smb
spec:
  capacity:
    storage: 40Gi
  accessModes:
    - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  storageClassName: smb
  mountOptions:
    - dir_mode=0777
    - file_mode=0777
  csi:
    driver: smb.csi.k8s.io
    # volumeHandle format: {smb-server-address}#{sub-dir-name}#{share-name}
    # make sure this value is unique for every share in the cluster
    volumeHandle: smb-server.default.svc.cluster.local/share##
    volumeAttributes:
      source: //192.168.0.93/sambashare
    nodeStageSecretRef:
      name: smbcreds
      namespace: default

Execute and create the PV:

kubectl create -f pv-smb.yaml

Create a PVC

Create a pvc-smb-static.yaml file:

kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: pvc-smb
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 10Gi
  volumeName: pv-smb
  storageClassName: smb

Execute and create the PVC:

kubectl create -f pvc-smb-static.yaml

Create a deployment web-demo.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
  labels:
    app: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
        - name: nginx
          image: nginx:1.19.5
          ports:
            - containerPort: 80
          volumeMounts:
            - name: nginx-storage
              mountPath: /usr/share/nginx/html
      volumes:
        - name: nginx-storage
          persistentVolumeClaim:
            claimName: pvc-smb

Execute and create the deployment:

kubectl create -f web-demo.yaml

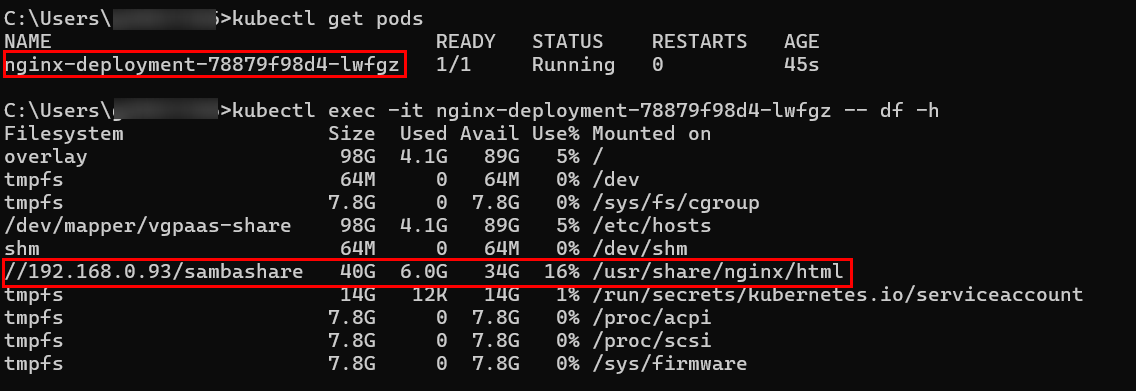

Log in to the container and check the mounted volume:

kubectl get pods
kubectl exec -it <container-name> -- df -h
